What is a Fact table?

A fact table is the central table in a star schema that contains “facts”. A fact table stores quantitative information for analysis and is often denormalized.

A fact table works with dimension tables. Thus, the fact table consists of two types of columns. The foreign keys column allows joins with dimension tables, and the measures columns contain the data that is being analyzed. The primary key of a fact table is usually a composite key that is made up of all of its foreign keys.

A fact table might contain either detail level facts or facts that have been aggregated (fact tables that contain aggregated facts are often instead called summary tables). A fact table usually contains facts with the same level of aggregation

Types of fact tables:
There are basically three fundamental measurement events, which characterizes all fact tables.[2]
  1. TransactionalA transactional table is the most basic and fundamental. The grain associated with a transactional fact table is usually specified as "one row per line in a transaction", e.g., every line on a receipt. Typically a transactional fact table holds data of the most detailed level, causing it to have a great number of dimensions associated with it.
  2. Periodic snapshots
    The periodic snapshot, as the name implies, takes a "picture of the moment", where the moment could be any defined period of time, e.g. a performance summary of a salesman over the previous month. A periodic snapshot table is dependent on the transactional table, as it needs the detailed data held in the transactional fact table in order to deliver the chosen performance output.
  3. Accumulating snapshots
    This type of fact table is used to show the activity of a process that has a well-defined beginning and end, e.g., the processing of an order. An order moves through specific steps until it is fully processed. As steps towards fulfilling the order are completed, the associated row in the fact table is updated. An accumulating snapshot table often has multiple date columns, each representing a milestone in the process. Therefore, it's important to have an entry in the associated date dimension that represents an unknown date, as many of the milestone dates are unknown at the time of the creation of the row.

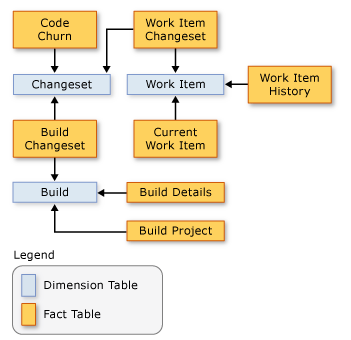

The following diagrams provide an overview of the fact tables in the Team System data warehouse and the dimensions tables they have in common:
